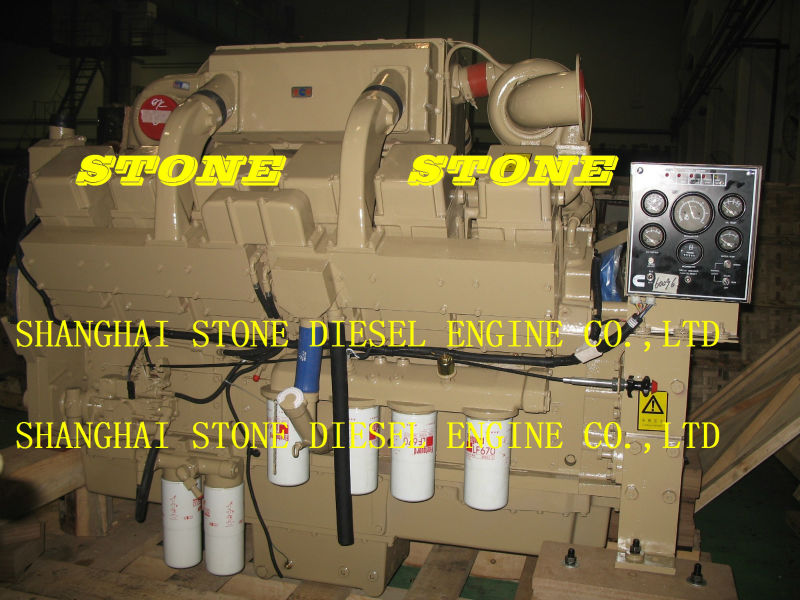

| Cummins KT38-P780 Pump Drive Engine |
|
|
|
 The product description
|
| General data of Cummins KT38-P780 Pump Drive Engine |
| Engine Model |
Cummins KT38-P780 |
| Type |
4 stroke, 12 cylinder V Type |
| Displacement |
37.7 L |
| Bore&Stroke |
159*159 mm |
| Dry Type Net Weight with flywheel(air cooled) |
3719 KG |
| Wet Type Net weight with flywheel(air cooled) |
4016 KG |
| Center of gravity from front face of block |
813 mm |
| Center of gravity above crankshaft centerline |
279 mm |
|
| Performance Date of Cummins KT38-P780 Pump Drive Engine |
| Max Output @ Speed |
582KW/780HP @ 1800 r/min |
| Output @ Speed(Maxt torque) |
474KW/635HP @ 1300 r/min |
| Max Torque @ Speed |
3481N.m @ 1300 r/min |
| Torque @ Rated Output |
3089N.m @ 1800 r/min |
| Minimum Fuel Consumption @ Speed |
209.9 g/KW.h @ 1400 r/min |
| Fuel Consumption @ Rated Speed |
216.0 g/KW.h @ 1800 r/min |
|
| Technical data of Cummins KT38-P780 Pump Drive Engine |
| Aspiration |
Turbocharged |
| Fuel System |
PT STC |
| Coolant capacity-engine only |
118 L |
| Idle speed |
625 r/min |
| Maximum No Load Speed |
1800 r/min |
| Maximum Super Speed |
|
| Compression ratio |
15.5:1 |
| Ignition Order |
1R-6L-5R-2L-3R-4L-6R-1L-
2R-5L-4R-3L | |
|
 |
