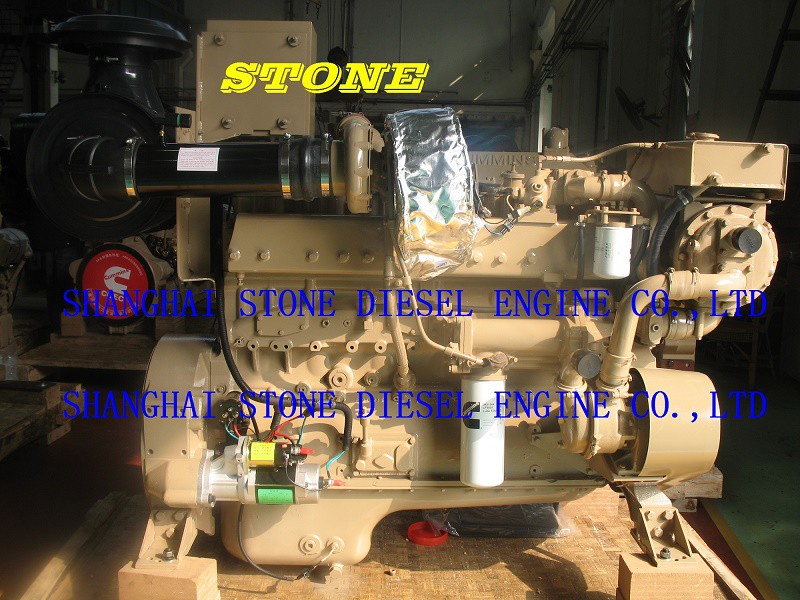

| Cummins NT855-M270 Marine Engine |
|
|
|
 The product description
|
| General data of Cummins NT855-M270 Marine Propulsion Engine |
| Engine Model |
Cummins NT855-M270 |
| Type |
6 cylinder in line |
| Rating Type |
Continuous |
| Displacement |
14 L |
| Bore&Stroke |
140×152 mm |
| Weight (Dry) - Engine Only |
1258 KG |
| Weight (Dry) - Engine With HeatexchangerSystem |
1385 KG |
|
|
| Technical data of Cummins NT855-M270 Marine Propulsion Engine |
| Aspiration |
Turbocharged |
| Fuel System |
PT Pump |
| Coolant Flow to Engine Heat Exchanger |
234 l/min |
| Minimum Idle speed Setting |
575-650 RPM |
| High Idle Speed Range |
1962-2106 RPM |
| Normal Idle Speed Variation |
25 RPM |
| Compression ratio |
14.5:1 |
| Piston Speed |
9.1 m/sec |
| Firing Order |
1-5-3-6-2-4 |
|
|
| Performance Date of Cummins NT855-M270 Marine Propulsion Engine |
| Rated Output/Speed |
201KW/270HP/1800RPM |
| Max torque/Speed |
1174 N.m/1500 RPM |
| Brake Mean Effective Pressure |
957 KPa |
| Fuel Consumption/rated speed |
52 l/hr |
| Approximate Fuel Flow to Pump |
156 l/hr | |
|
 |
