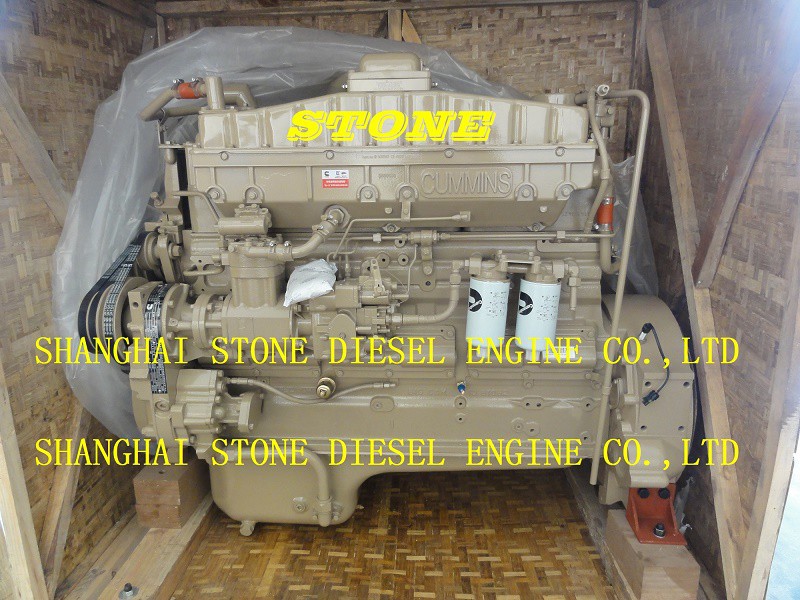

| Cummins NTA855-C400 Construction Engine |
|
|
|
 The product description
|
| General data of Cummins NTA855-C400 Construction Machinery Engine |
| Engine Model |
Cummins NTA855-C400 |
| Type |
4 stroke, 6 cylinder in line |
| Displacement |
14 L |
| Bore&Stroke |
140*152mm |
| Dry Weight |
1303 KG |
| Wet Weight |
1348 KG |
| Dimension(L*W*H) |
1115*716*1077 (mm) |
| Center of gravity from front face of block |
549 mm |
| Center of gravity above crankshaft centerline |
140 mm |
|
| Performance Date of Cummins NTA855-C400 Construction Machinery Engine |
| Rated Output/Speed |
298KW/400HP @ 2100RPM |
| Max Torque/Speed |
1356N.m @ 1500RPM |
| Oil Consumption |
79.1 L/h |
| Brake Mean Effective Pressure |
1216 KPa |
| Piston Speed |
10.7 m/c |
|
| Technical data of Cummins NTA855-C400 Construction Machinery Engine |
| Aspiration |
Turbocharged Aftercooled |
| Fuel System |
PT Pump Direct Injection |
| Coolant capacity-engine only |
20.8 L |
| Oil Pan Capacity-Low/High |
28.4/36 L |
| Idle speed |
600 RPM |
| Maximum No Load Speed |
2400 RPM |
| Compression ratio |
14.5:1 |
| Ignition sequence |
1-5-3-6-2-4 | |
|
 |
